Built in-house in our dedicated workshop

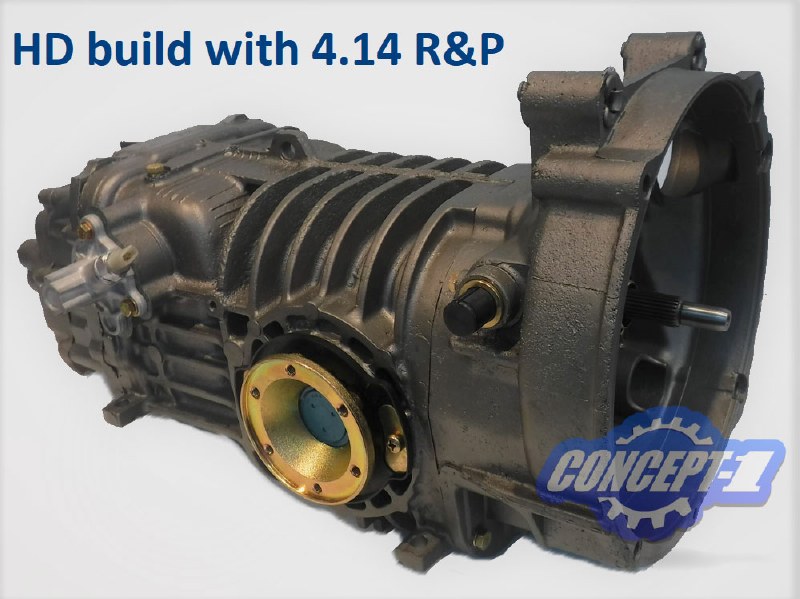

A heavy duty version of the 2WD rebuild with NEW 4.14 Ring and pinion installed.
Gearing is approx. %17 taller than the stock 4.83/4.86 Ring and pinion. Perfect for diesel Engine swap Vehicles. ALH, AAZ, BRM, BEW, Pump Duse
All new German bearings
All new German Syncros
German gaskets and seals
Updated, forged heavy duty 3-4 slider hub
Aluminum tail housing (stronger than the original Magnesium unit)
Thrust plate for mainshaft beaing. Prevents the gear stack from walking into the tail housing over time
Heavy duty cross shaft for clutch release bearing
Oil splash plate for 4th gear and the ring and pinion
Chromoly pinion nut
Welded 1-2 shift rail
Factory 4 gear diff. Most units are the 2 gear, weaker unit
All exterior parts are painted or plated for corrosoin resistance
Factory gear ratios. Can be built for taller gearing, conversions (VW, Subaru, TDI etc) at additional cost.
1 year warranty
Please see our "notes on transmission cores" on the main transmission page
These have a core value of $900.00 which is not included in the price shown. Please send your core in before purchase if you are doubful of the condition.
This is a 4 speed manual Transmission for 1983-1991 Vanagon 2WD
1st gear 3.78
2nd gear 2.06
3rd gear 1.23
4th gear 0.85
Please note;
Almost all of our transmissions are built to order. We normally have a 2-8 week build time depending on volume. Please reach out to us to get an estimate before ordering.
This part does not qualify for free shipping. We have very reasonable rates with couriers and freight companies.
